Custom Portable Foldable Solar Panel Solution For Portable Power Station Brand Partnership
1. Project Background & Cooperation Vision
As portable power stations become essential for outdoor travel, emergency backup, and off-grid living, solar charging performance is no longer a “nice-to-have” feature—it is a core user experience driver.
At Glory Solar, with over 20 years of solar manufacturing expertise, we specialize in custom-designed portable foldable solar panels that seamlessly integrate with portable energy storage systems.
This solution is designed for long-term, high-quality cooperation with power station brands, focusing on:
2. Target Application Scenarios
This customized foldable solar panel solution is designed for:
• Portable power stations (300Wh–3000Wh)
• Outdoor camping & overlanding
• Emergency backup power
• RV & van life
• Remote work & off-grid scenarios
• Humanitarian & NGO projects (optional variant)
3. Customization Overview (Full Custom Scope)
|
Custom Category |
Customizable Options |
| Power Range | 60W / 100W / 120W / 160W / 200W / 400W |
| Electrical Specs | Voltage / Current / Series & Parallel design |
| Solar Cell Type | SunPower IBC / High-efficiency Mono PERC / N-type |
| Panel Structure | Single-sided / Vertical bifacial |
| Appearance | Full black design / logo / fabric color |
| Folding Design | 2-fold / 3-fold / 4-fold |
| Handle | Integrated handle / reinforced rubber handle |
| Output Cable | Length / gauge / flexibility |
| Connectors | DC7909 / DC8020 / XT60 / Anderson / MC4 |
| Mounting | Kickstand / eyelets / hanging loops |
| Protection | ETFE / IP65–IP67 |
| Branding | OEM / ODM / white-label |
4. Electrical Customization (Power · Voltage · Current)
4.1 Power Selection (Matched to Power Station)
|
Power Station Size |
Recommended Panel |
| 300–500Wh | 100W |
| 700–1000Wh | 200W |
| 1500–2000Wh | 2 × 200W or 400W |
| 3000Wh+ | 400W bifacial |
4.2 Voltage & Current Custom Design
We do not use fixed generic specs. Electrical parameters are optimized based on:
• Power station MPPT input range
• Cable loss optimization
• High-temperature derating margin
Typical Examples:
100W Panel: Vmp: 18V–20.5V | Imp: 5.2–5.5A
200W Panel: Vmp: 18V–20.5V | Imp: 9.5–10.3A
400W Panel (Bifacial): Front: 400W | Rear gain: +5–15%
5. Single-Sided vs Bifacial Design
5.1 Single-Sided Foldable Panel
✔ Lighter
✔ Lower cost
✔ Ideal for camping & fast deployment
5.2 Vertical Bifacial Foldable Panel
✔ Up to +15% real-world gain
✔ Better morning & afternoon performance
✔ Strong differentiation vs competitors
Recommended for premium power station bundles
6. Full Black Aesthetic Design
To match modern power station brands:
• All-black solar cells
• Black ETFE surface
• Black fabric backing
• Minimalist logo placement
Result: Premium · Tech-oriented · High perceived value
7. Handle & Folding Customization
7.1 Handle Options
• Integrated fabric handle (lightweight)
• Reinforced rubber handle (heavy-duty)
• Dual-handle design for 400W panels
7.2 Folding Structure
• 2-fold: compact & lightweight
• 3–4 fold: higher power, better portability
• Magnetic or Velcro folding lock
8. Output Cable & Connector Customization
8.1 Cable Length & Gauge
Standard: 1.5m / 2m / 3m
Gauge: 100W (18AWG/16AWG) | 200W+ (16AWG/14AWG)

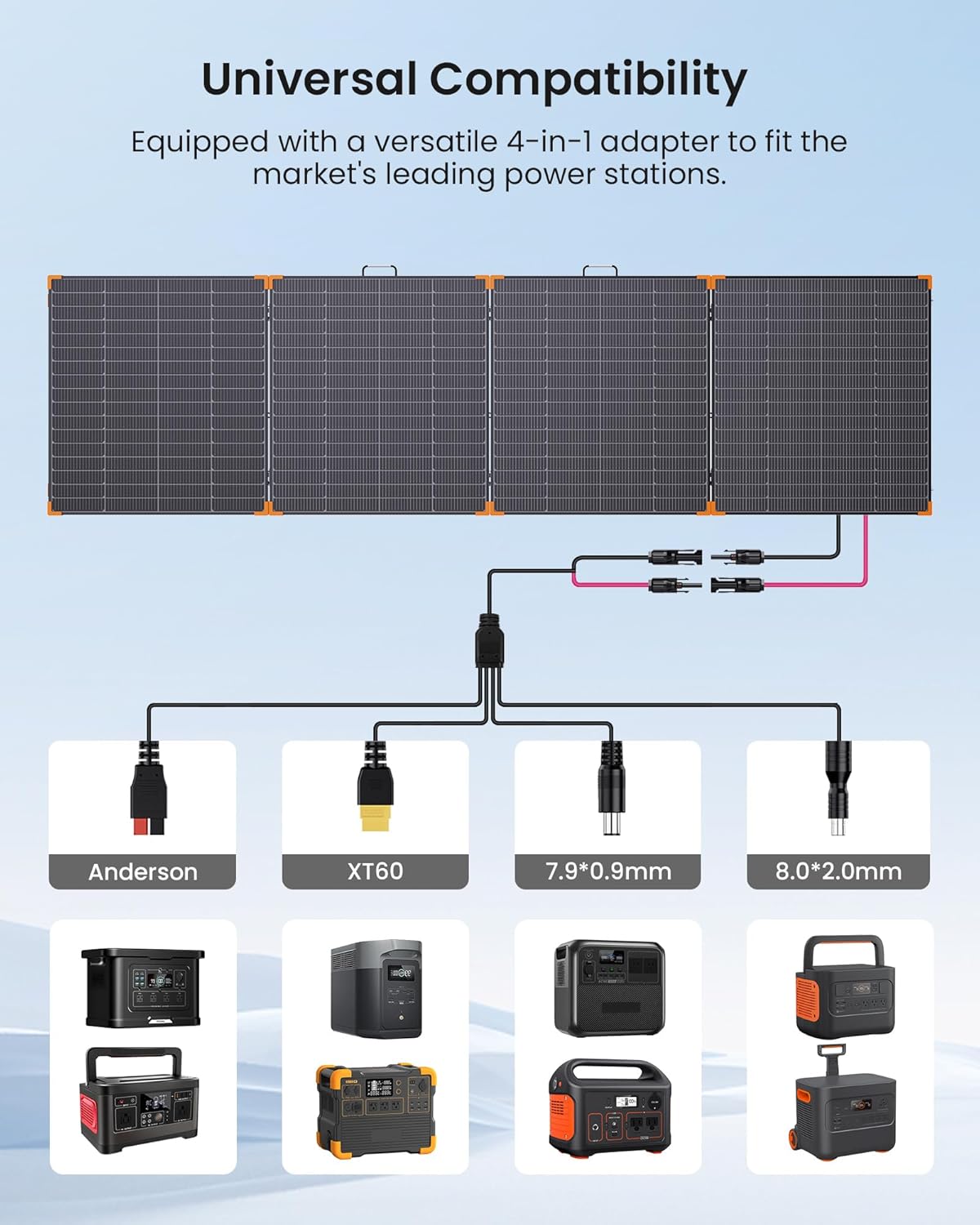

8.2 Connector Options
DC7909 / DC8020 (Jackery / EcoFlow / Oupes)
XT60 / Anderson 30A / MC4 (parallel expansion)
9. Installation & Outdoor Use Design
• Integrated adjustable kickstand
• Stainless steel eyelets for hanging
• IP65–IP67 waterproof
• ETFE surface for UV & Scratch resistance
10. Cooperation Models
Option A – OEM Supply
Your brand, our manufacturing. Fixed specs, stable long-term supply.
Option B – ODM Co-development
Joint electrical & mechanical design. Exclusive structure or appearance.
Option C – Premium Bundle Partner
Solar panel + power station bundle. Retail & online channel support.
11. Conclusion
This customized portable foldable solar panel solution is not just a product—it is a strategic extension of your power station ecosystem.
With Glory Solar, you gain: Engineering-driven customization, Manufacturing stability, and Premium market credibility.
