Flexible Solar Panel
Break Free from Campsite Dependence
— Go Further, Stay Anywhere
Flexible Solar Panels —
Your All-in-One Mobile Power Station

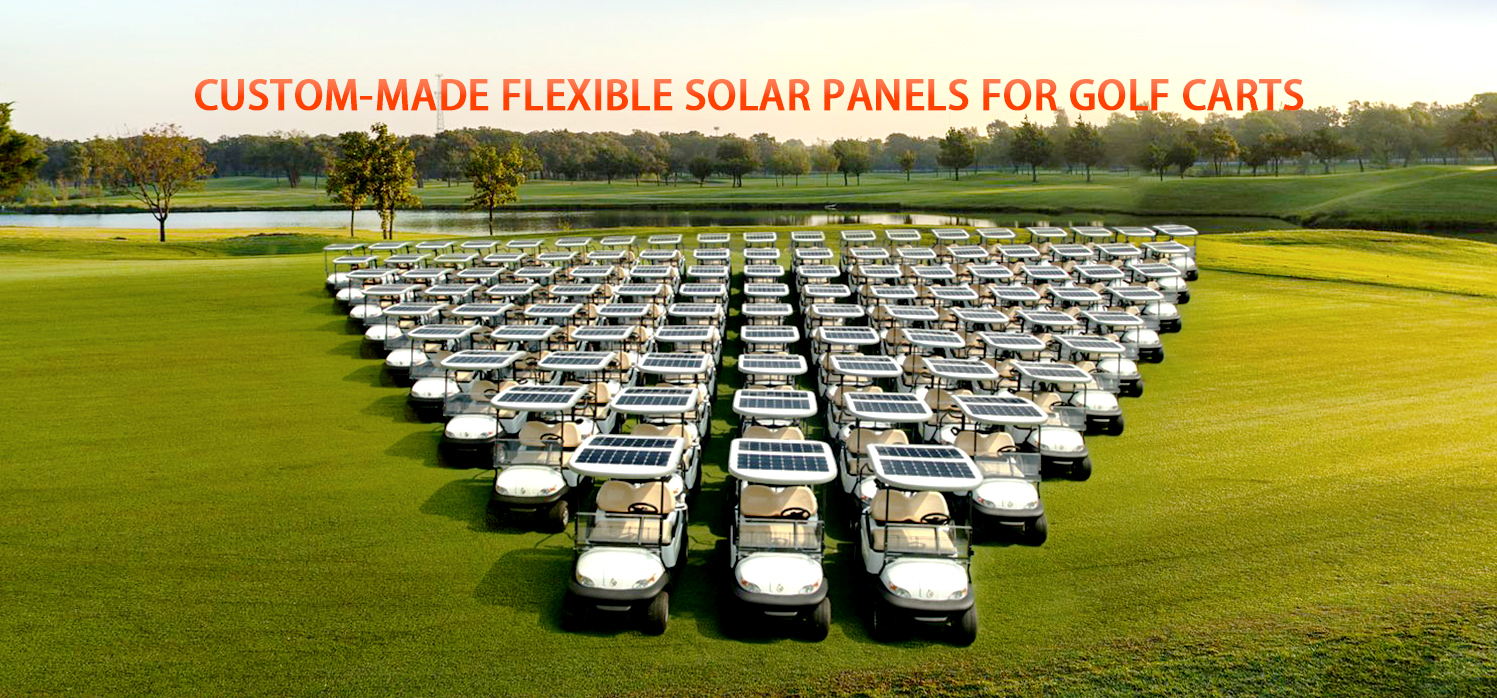

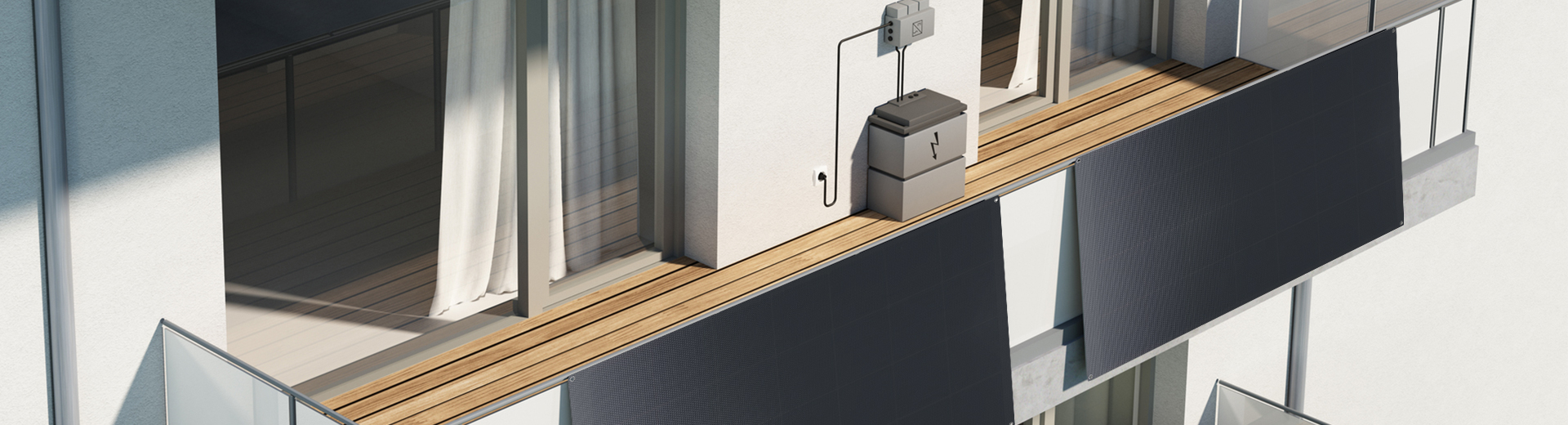

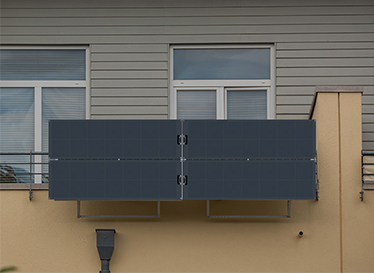

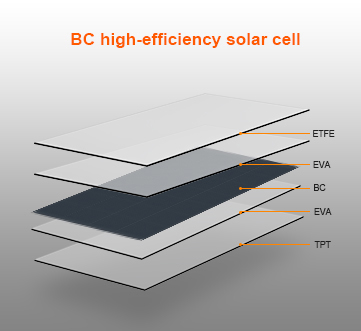

Leave behind the weight and rigidity of traditional solar panels. Our flexible solar panels are built with advanced ETFE polymer materials, significantly reducing weight and thickness. They seamlessly conform to RV roofs, yacht decks, balcony railings, and golf cart tops.
Easy installation — simply stick and use.

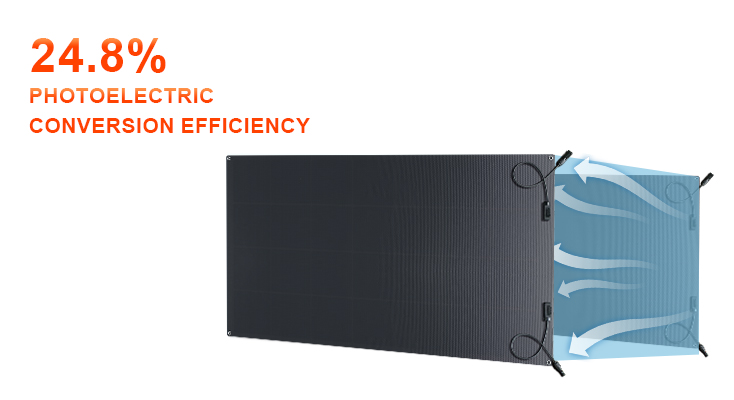

High efficiency power generation, long-lasting durability, and a service life of over 10 years.
Available in 100W / 200W / 400W — there’s always a perfect fit for your needs.
Why Choose Glory Solar Flexible Panels?
Product Comparison
- Item:
- Model:
- Solar Cells:
- Rated Power:
- Operating Voltage (Vmp):
- Operating Current (Imp):
- Open Circuit Voltage (Voc):
- Short Circuit Current (Isc):
- Dimensions:

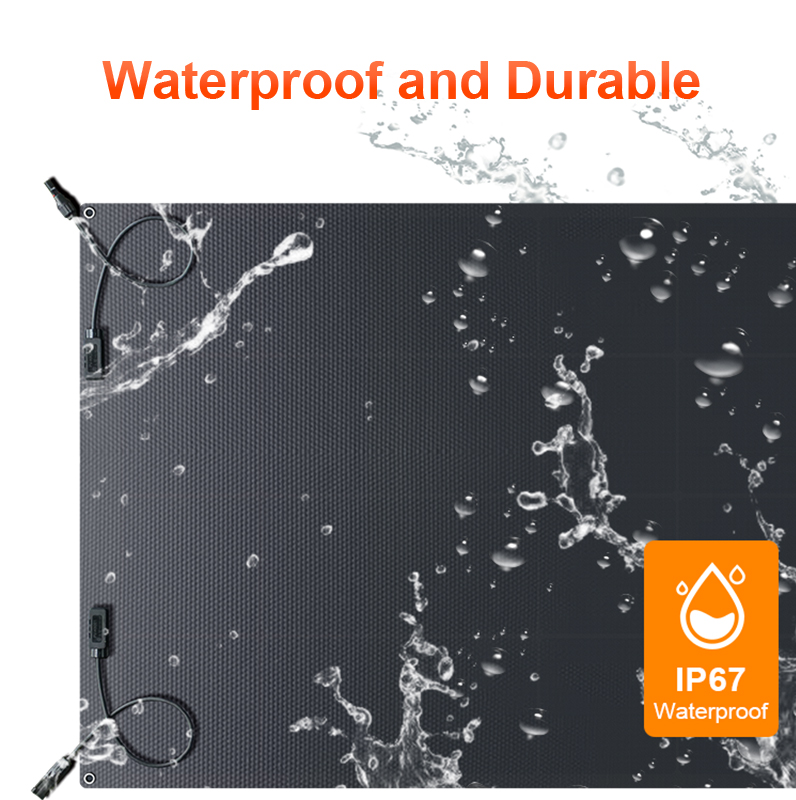

- Waterproof Rating:

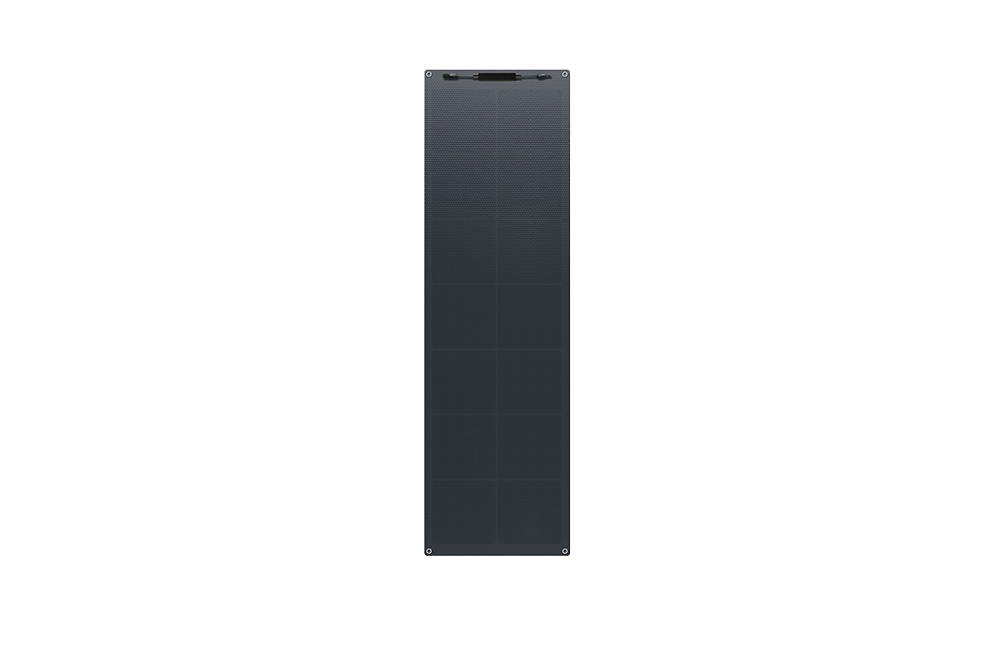

- 100W Flexible Panel
- GSFX-100
- HPBC
- 100W
- 16.8V
- 5.95A
- 20.16V
- 6.64A
- 1340 × 397 × 2 mm
- IP67

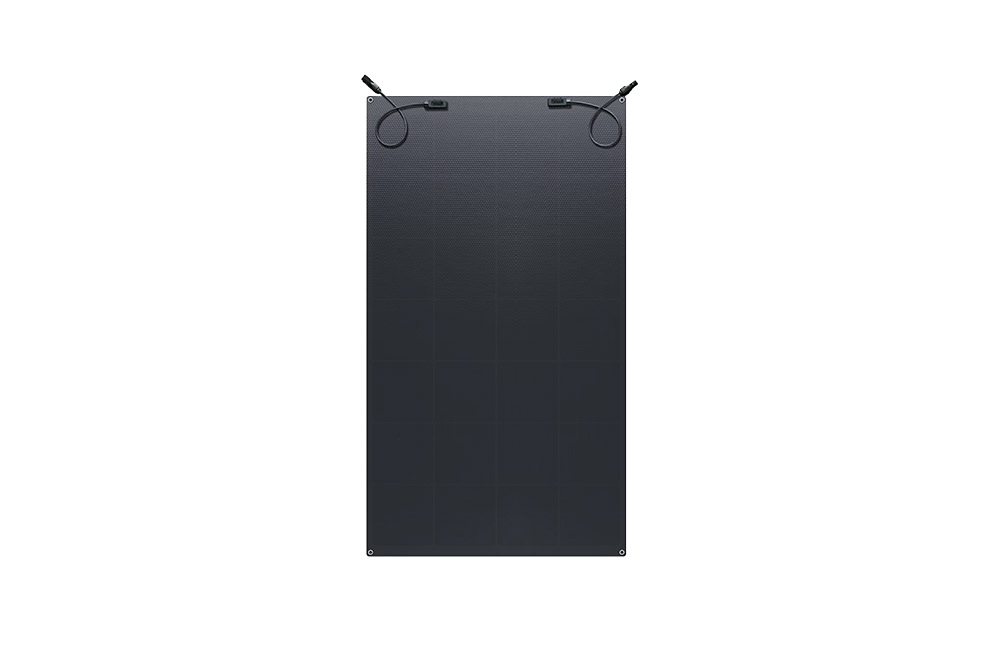

- 200W Flexible Panel
- GSFX-200
- HPBC
- 200W
- 33.6V
- 5.95A
- 40.32V
- 6.647A
- 1340 × 765 × 2 mm
- IP67

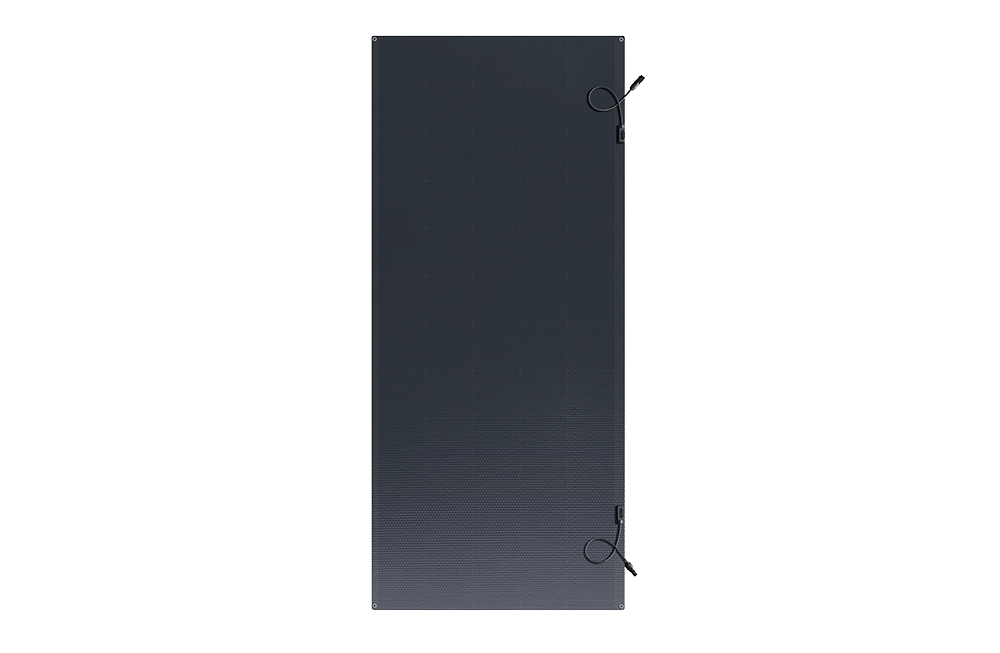

- 400W Flexible Panel
- GSFX-400
- HPBC
- 400W
- 36V
- 11.1A
- 43.2V
- 13.294A
- 2236 × 989 × 2 mm
- IP67

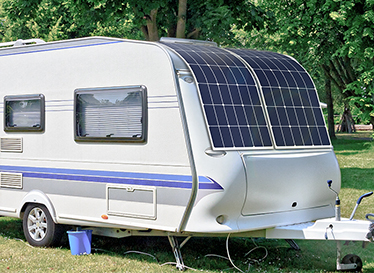

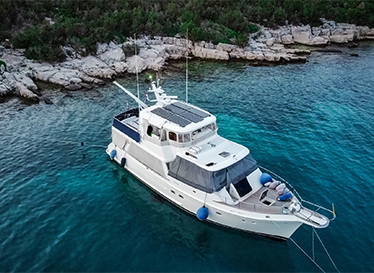

Product Application
Frequently Asked Questions
-
How to Install and Use?

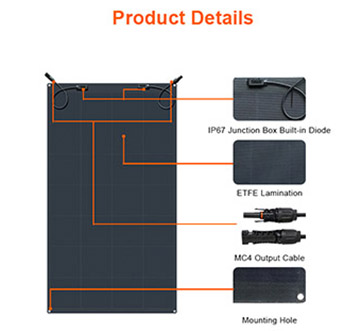

Can be directly mounted on flat or slightly curved surfaces using adhesive backing, cable ties, or screws (pre-installed mounting holes).

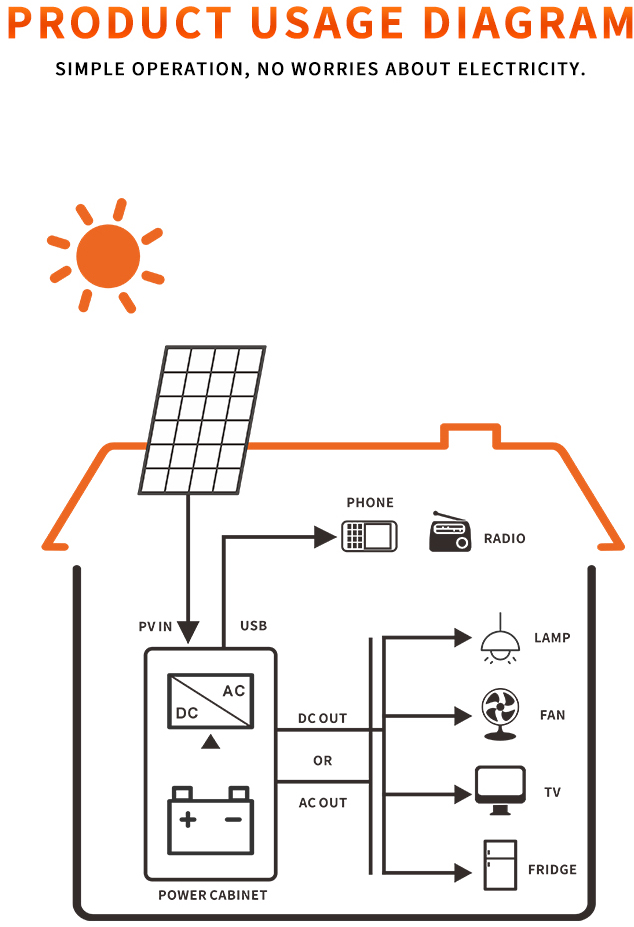

Simply connect the included MC4 cable to an inverter or energy storage battery for immediate use. -
Can the Size Be Customized?
Yes, customization is available for size, dimensions, power output, and logo to meet your specific requirements. -

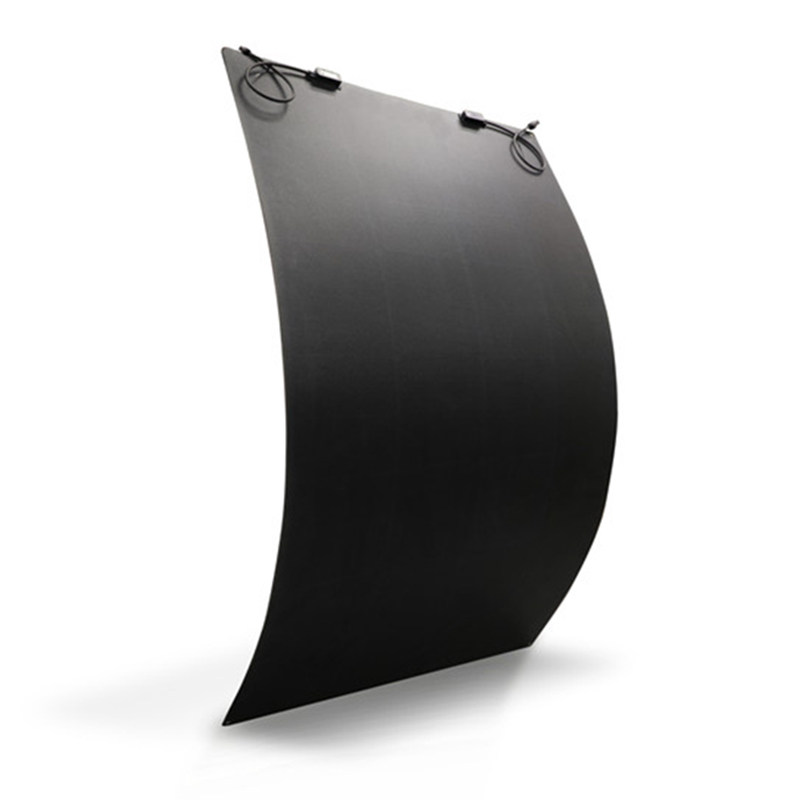

Is It Flexible?
Yes, it supports bending up to approximately 30°, making it ideal for irregular surfaces such as RVs and yachts. -
How to Connect Multiple Panels?
Multiple panels can be connected in series or parallel, allowing flexible system expansion to meet power needs from small devices to larger appliances. -
What Accessories Are Included?
Comes with a 0.9-meter MC4 power cable.
Product Operating Environment Description
- When using, be sure to place this product in a sunny place.
- Do not use sharp objects to scrape the solar light surface.
- Do not use this product at high temperature.
- The operating temperature should be 60 below.
- Do not put it in the fire.
- This product needs to be handled carefully, do not throw,drop, fall high.
- Do not bend vigorously, the bending Angle should not begreater than 25 degree.
- Keep out of children's reach and avoid accidental ingestio
